E82, E9X N51 N52 EUROBOX D-Style RAM Cold Air Intake Kit | DCAIE-KIT

This EUROBOX specific OEM+ upgrade KIT for your airbox is here! Eurobox D-Style RAM Air Intake is here to bring the the discontinued DINAN and DIY DINAN cold air intake together for a easier and better installation!

It takes advantage of the high pressure cold air from your lower bumper to improve horsepower, torque and throttle response. Designed to work with the factory N52 airboxes with slight modifications for installation.

CHECK OUT OUR US AIRBOX ADAPTER

ATTACHMENT   -   KIT

Youtube - N52 Intake Sounds | Dinan attachment with N54 Manifold

Forum - +15hp +16ft

Installation Video:

Youtube - BMW N51/N52 D-Style RAM Cold Air Intake Adapter

YouTube:  E90 N52 | Budget Dinan Ram Intake DIY - Raimund

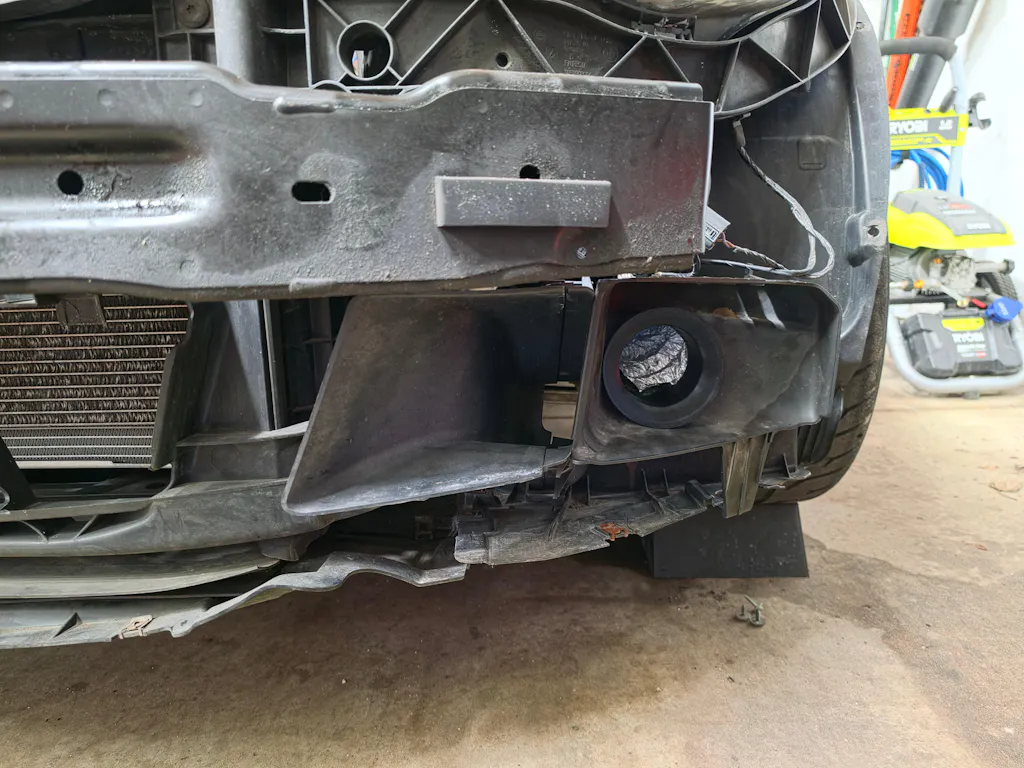

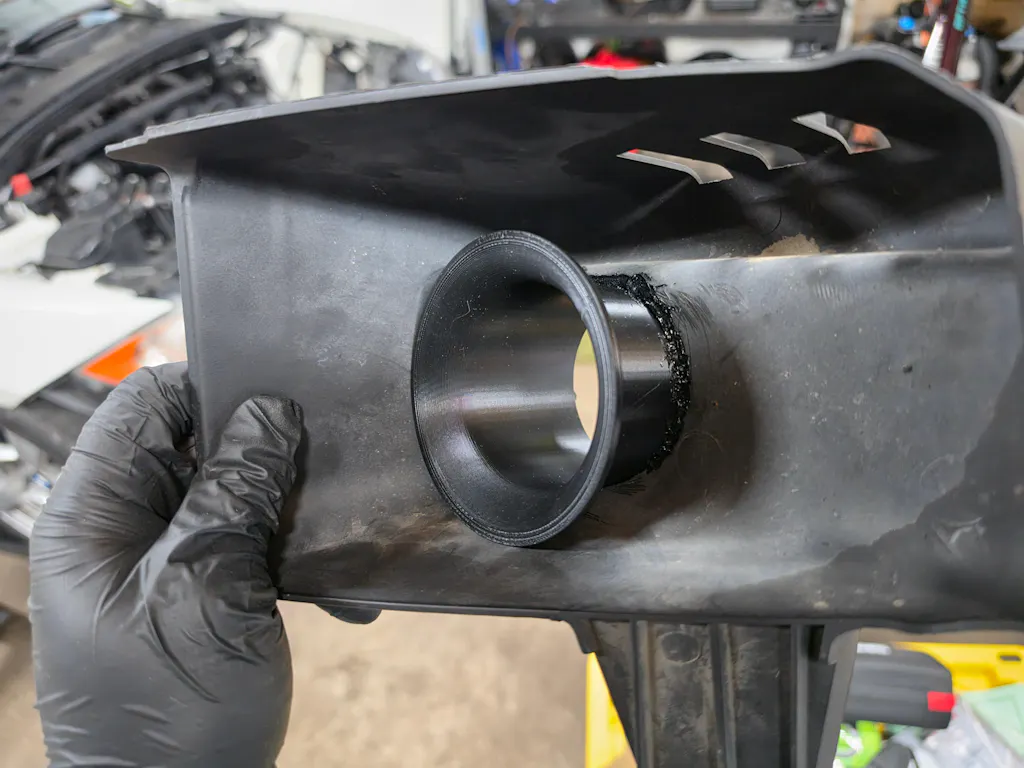

 Either a 2.75 inch hole saw in the factory lower bumper grille beside the brake duct, universal bumper grille mesh, or a fog light delete for the velocity pipe

Attach the hose to the lower velocity pipe intake, and attach the D-Style adapter to the other side of the hose.

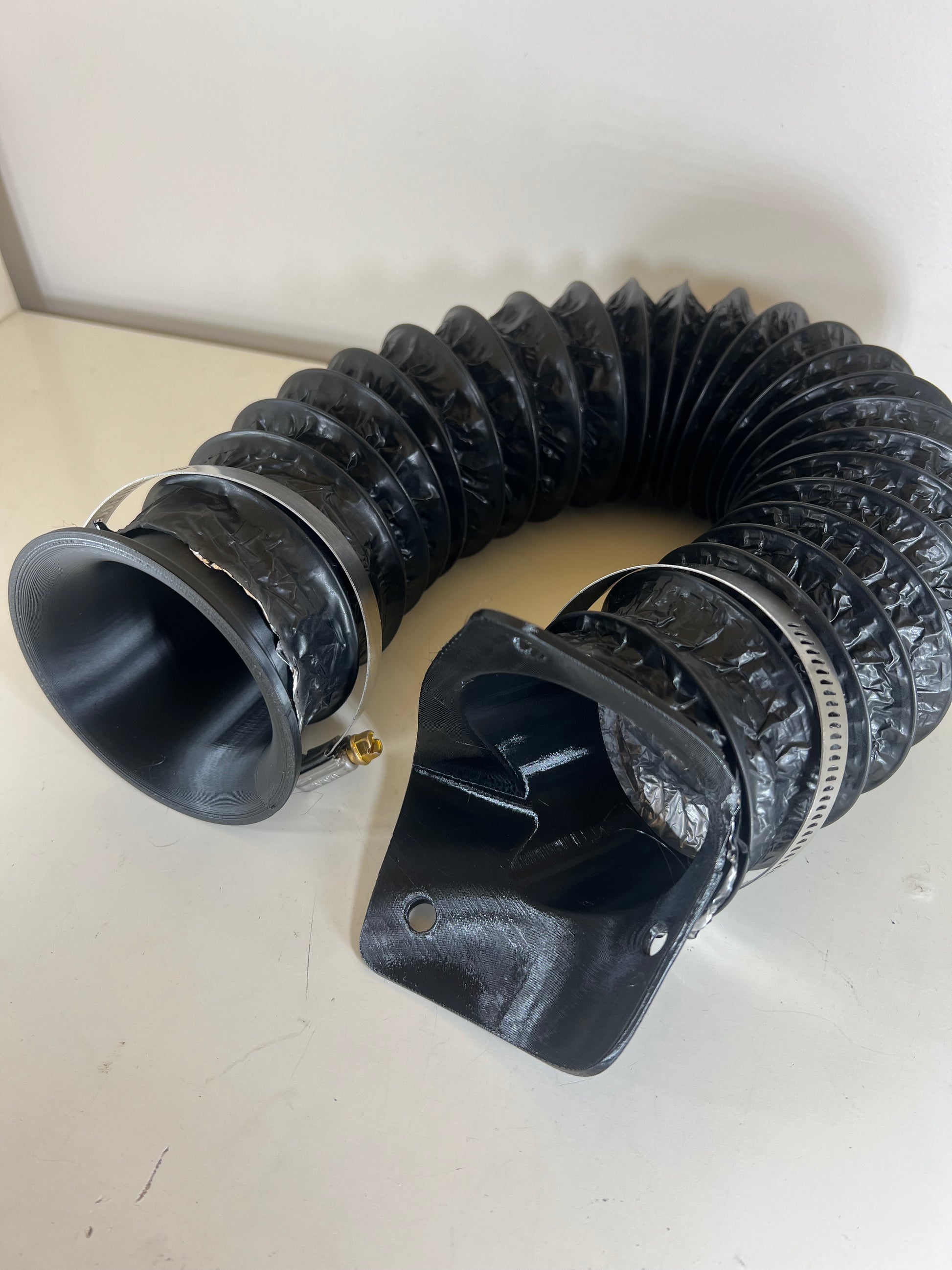

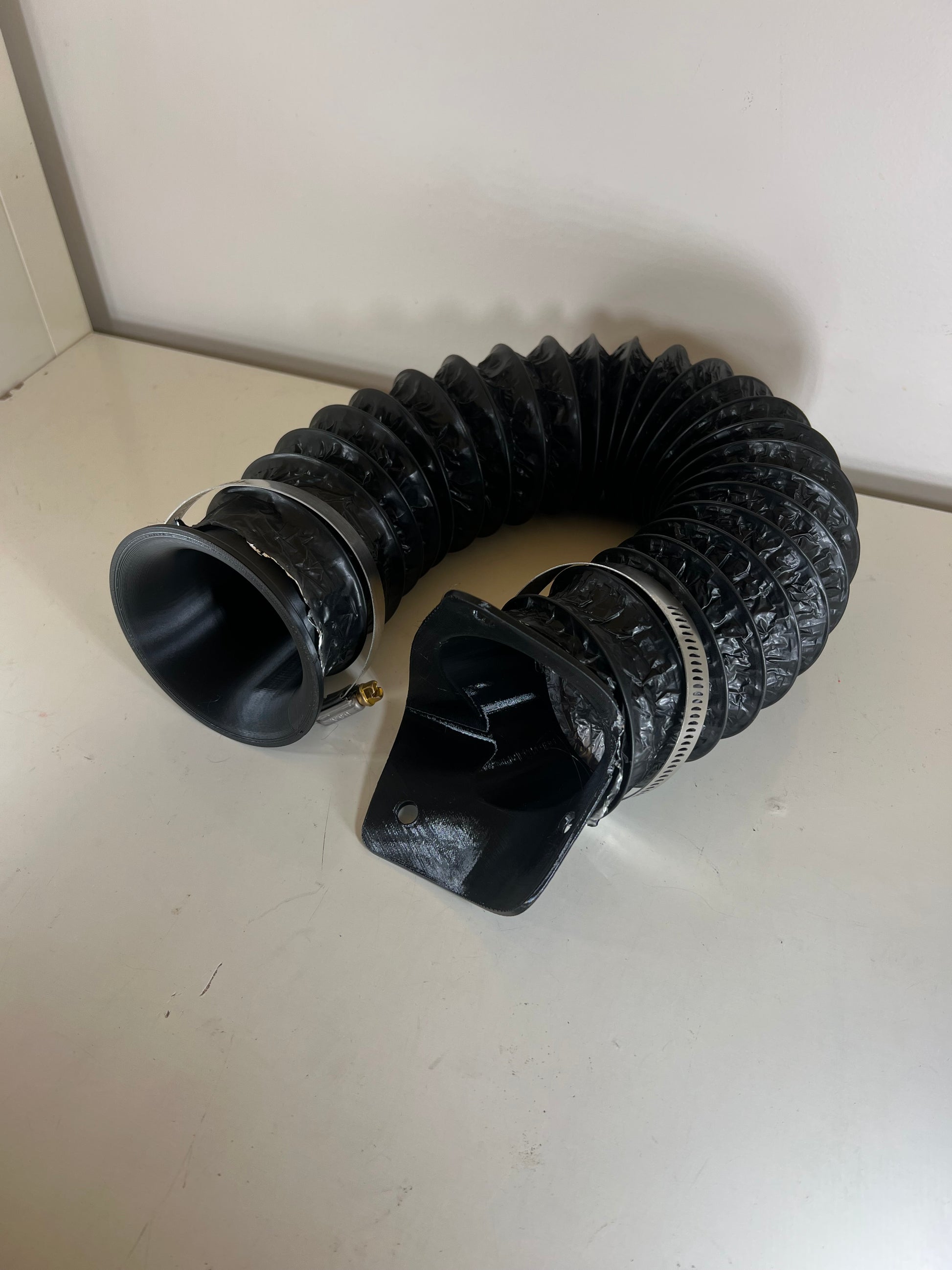

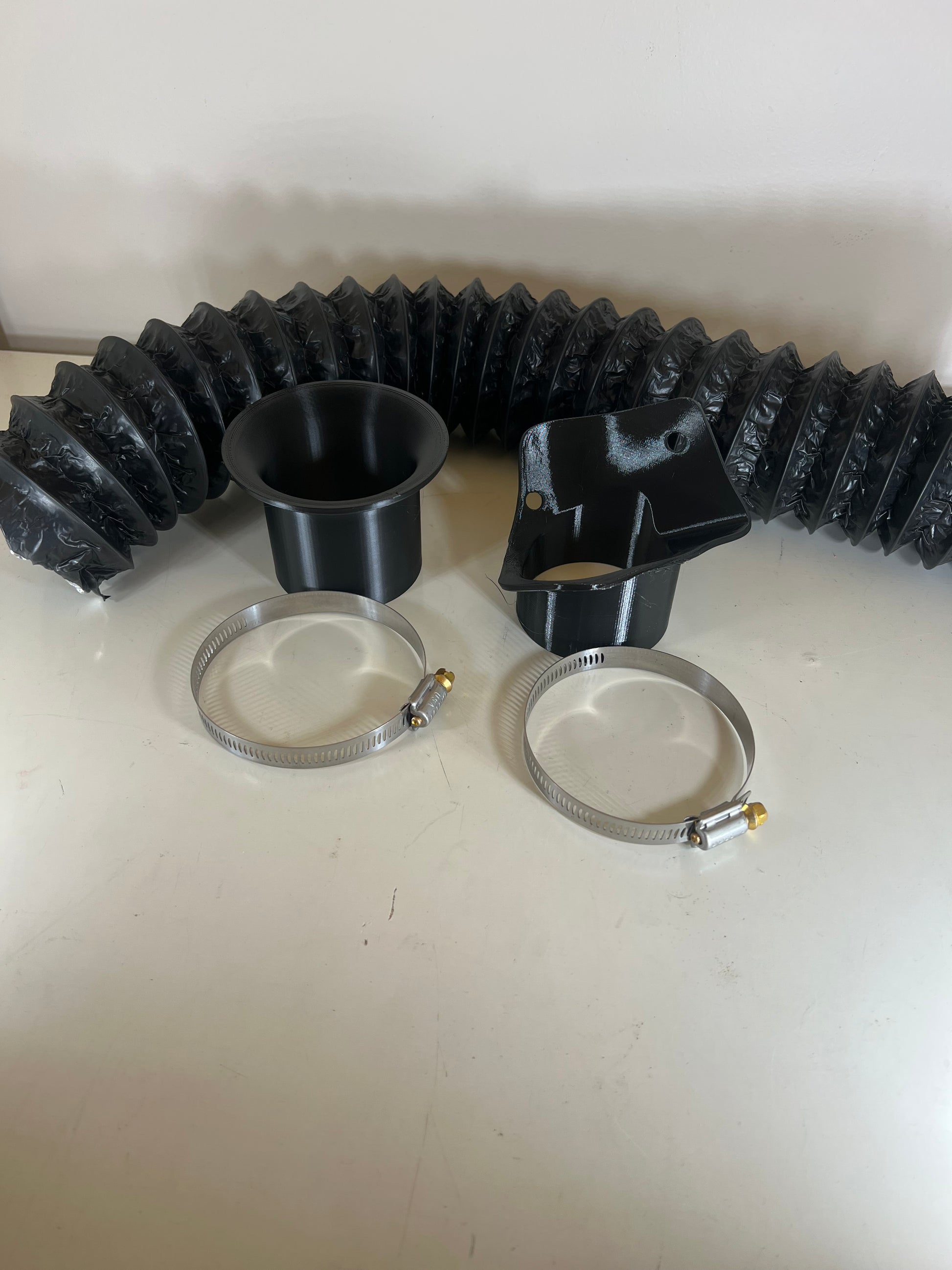

This total package includes:

• Velocity Pipe  - VIP90: Comes with a Black, 2.75” OD, Directs cold air from the lower bumper grille to the airbox for a high pressure air supply.

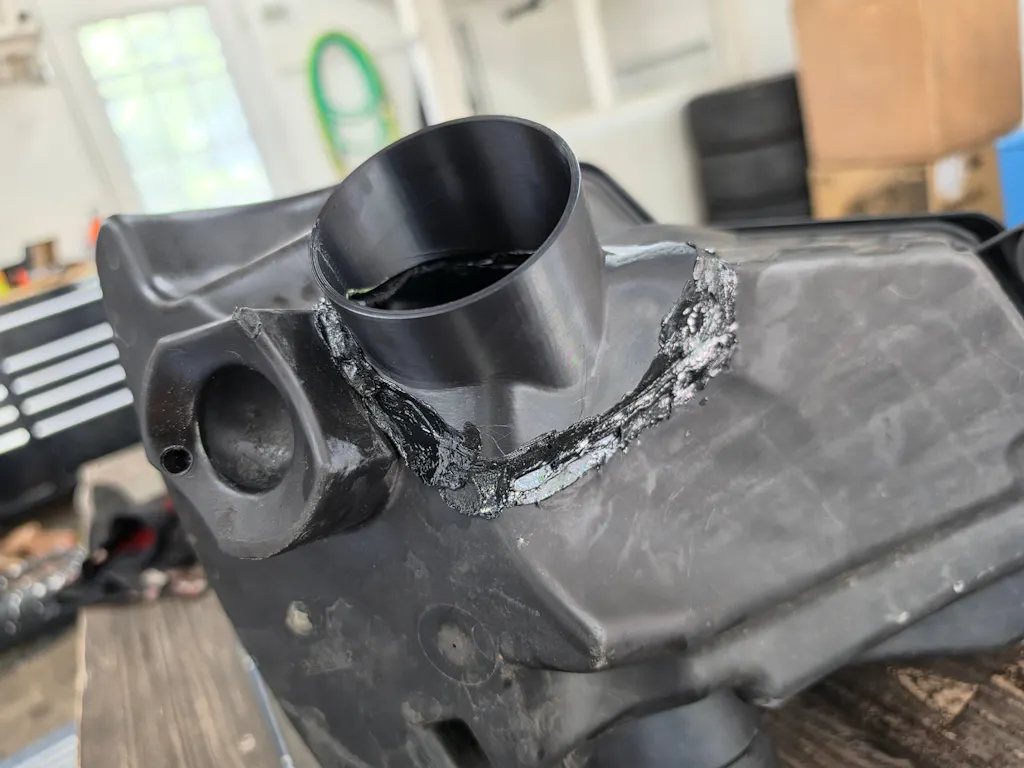

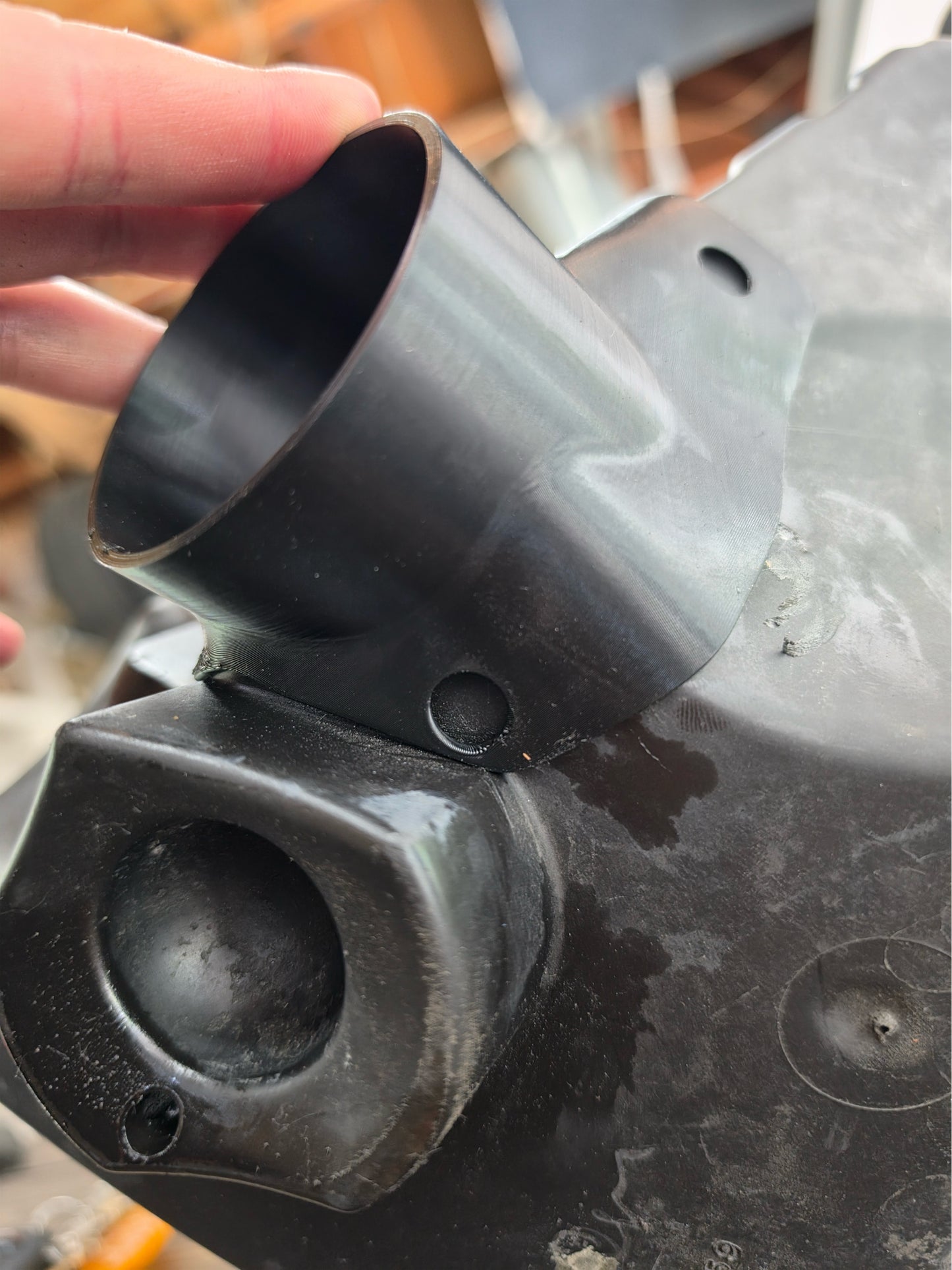

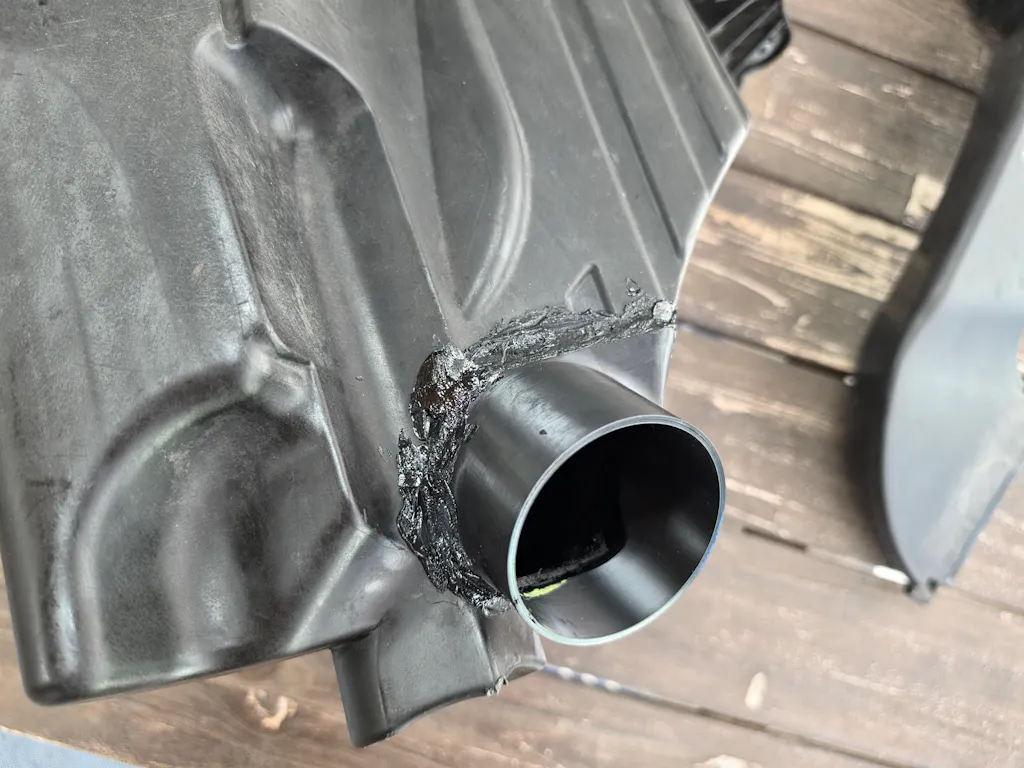

• D-Style Intake Adapter - DIA52: Attaches to the bottom of the US airbox, allowing the 3“ hose to adapt quickly to the adapter
• 2 1/2 Feet of 3” Air Hose: Made out of PVC and Aluminum foil, keeps the cold air, cold, while being flexible and stretchable.
• x2 3” Hose Clamps: stainless steel hose clamps to attach the hose to the velocity pipe and D-Style intake adapter, slip fitment works well

installation requires: not included

Dremel & Drill

(Option 1) x3 8mm thread bolts, x3 8mm thread nuts, x6 washers

(Option 2)  OR plastic rivets / push pins

(Option 3) OR after fitment confirmation, JB plastic weld together

black / grey RTV (optional)

If you would like to order an attachment without bolt holes, or a different diameter, or colour please contact us through the website, Instagram or email!

Want to print your own? Available on Cults3D

Fitment:

US AIRBOX: / EUROBOX

- E90, E91, E92, N51/N52 323(x)I 325(x)I, 328(x)I, 330(x)I,

- E82, 125i, 128i, 130i

- Does not fit E93 with out heavy modifications

Attachment OD: 69mm | 2.7”

Attachment ID: 65mm | 2.6”

Lifetime Warranty on 3D prints. Made out of PETG.

Part Numbers:

PrintablesAuto: DCAI-KIT
Interchange: DINAN D760-9000, D762-0066
