BMW 95A Race Upper Shock Bushing Kit, E82, E9X | USB90

This PrintablesAuto upper shock mount kit provides up to 80% more resistance to load compared to the OE bushings with the option for OE or D-Style design to increase shock travel by 10mm. With the harder rubber, the necked bushing is reduced in size to allow for a deeper travel before the end of the bump stop.

Made of 100%, 75% or 50% infill 95A TPU, this material provides nearly indestructible in strength with flex and give for your suspension movement. This race spec engine bushing is made for stiffness and not comfort. The different infill densities can help with dampening vibrations while staying stiff and compliment.

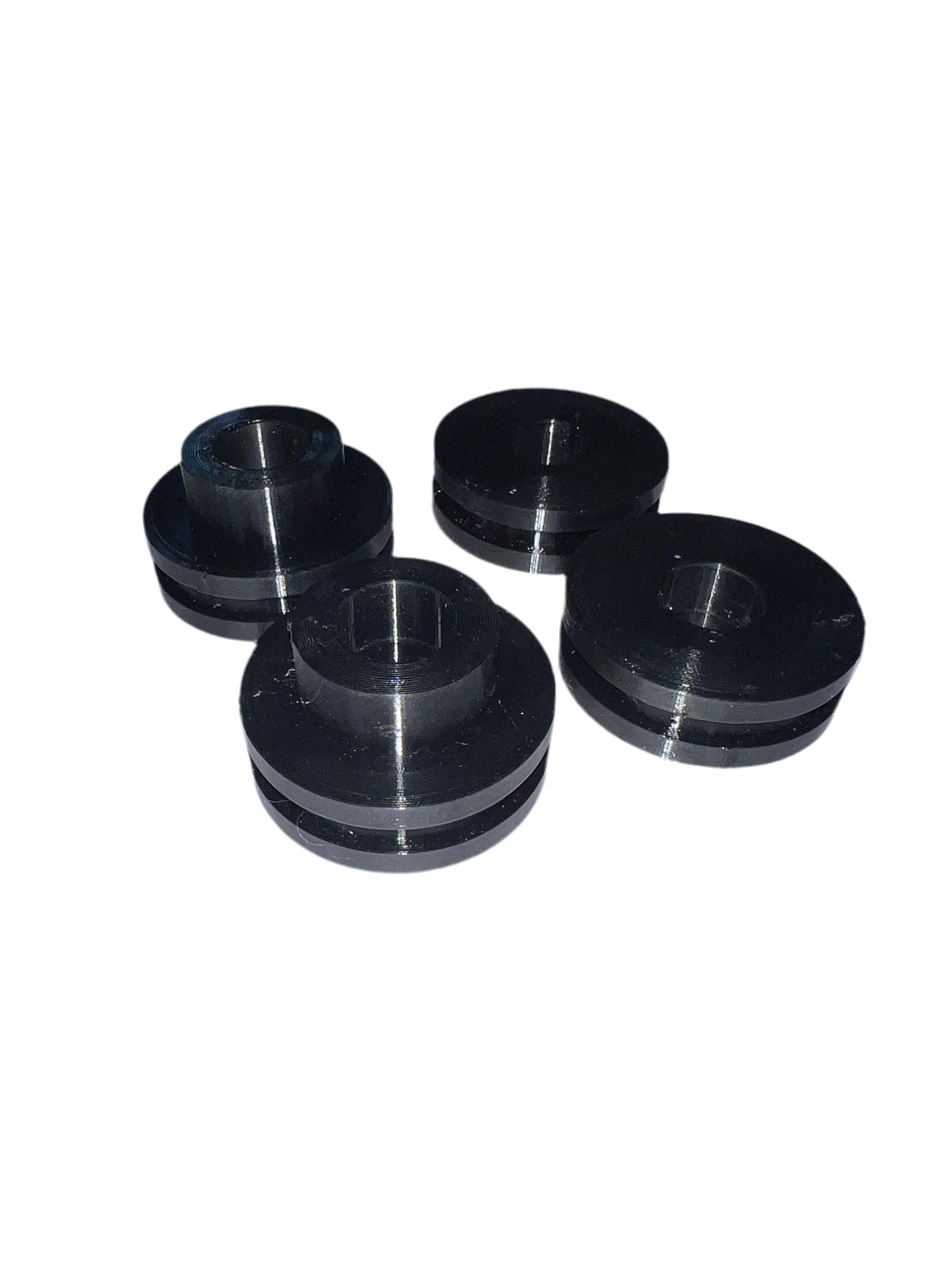

• Standard kit comes with 2 upper and 2 upper-mid bushings

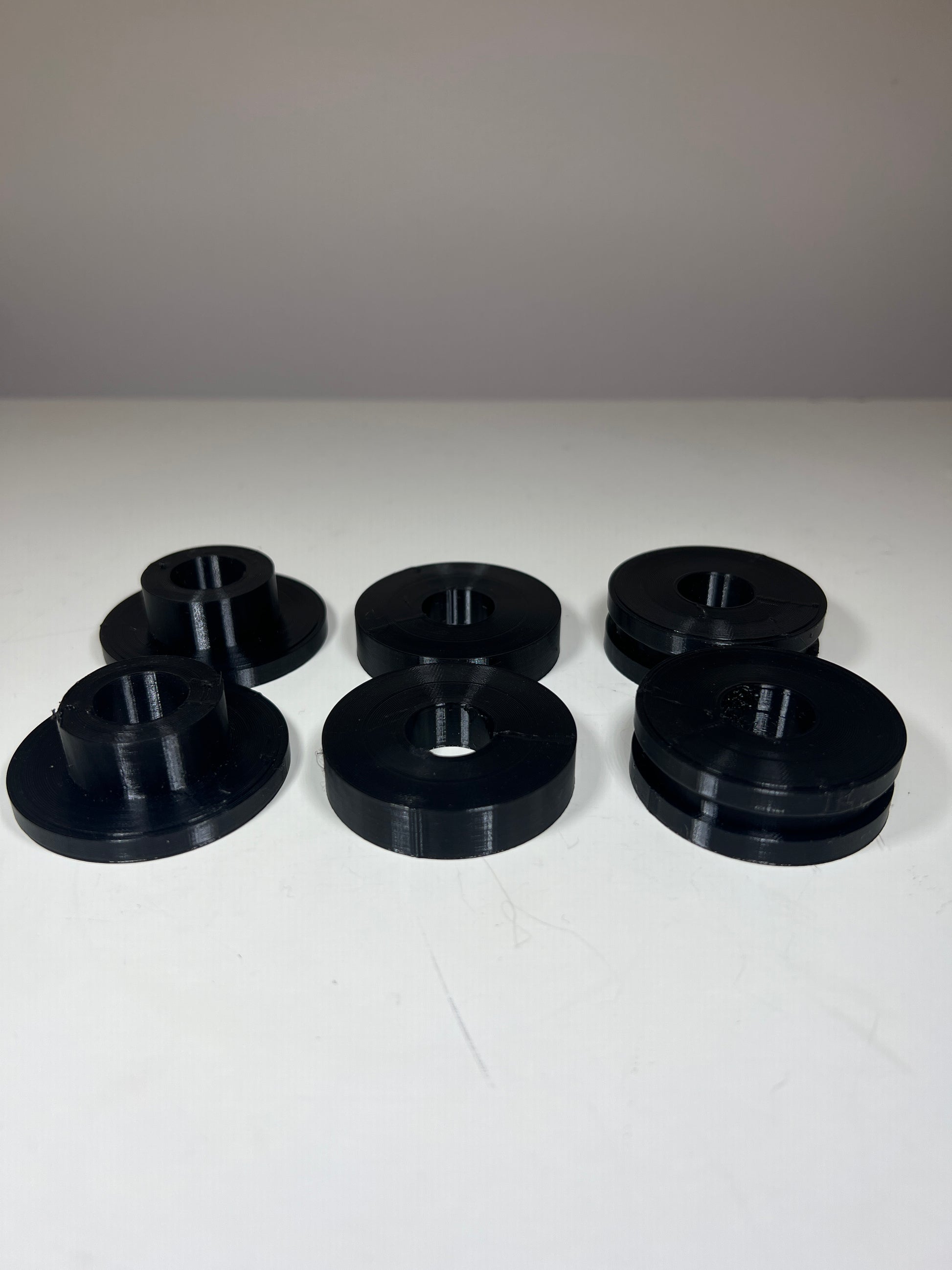

• D-Style comes with 4 upper and 2 upper-mid bushings to accommodate the 10mm extra, as seen on other kits

If you can find another pair of 95A harness upper shock mounts for cheaper from a shop, we will price match!

Currently bushings only, metal dowels or spacers not included, please reuse your metal hardware

•  D-Style will come with an additional bushings + the center metal dowel will need to be reduced by 5mm in height. Ref 1, Ref 2
• 14mm for adjustable shocks - currently no supplier for a widened washer hole or dowel, measurements may be requested.
• 16mm for EDC, - currently no supplier for a widened washer hole or dowel. measurements may be requested.

Not compatible if you have Electronic Damper Control / Air Suspension

Fitment:

E90, E91, E92, E93 3 Series + M3 2006-2012 N51/N52/N53/N54/N55/S65

E82, E88 1 Series N51/N52/N53/N54/N55 (not 135i convertible)

E84 X1 Series

OE part numbers:

33506771737, 33506771738

Interchange:

PFR5-416Bx2, D110-0007, D110-0008
